10 square meters food vacuum freeze dryer

Description Inquire

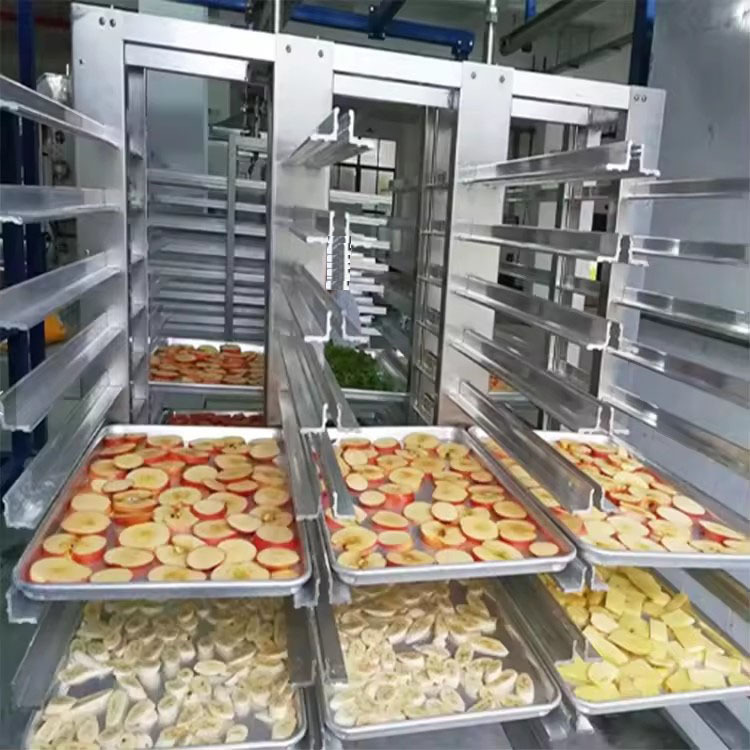

Basic overview
1. Equipment: 10 square meters food vacuum freeze dryer
2. Device Description

The 10-square-meter food vacuum freeze dryer is mostly used in medium-scale production . The door part is installed in the clean area , and the unit part is located in the general control area. The freeze dryer is composed of drying box, plate components, condenser, refrigeration system, vacuum system, circulation system, repressure system and electrical control system.

Preserve the integrity of the biological and chemical structure of the product and its activity over the long term;

Fully automatic customized freeze-drying process, humanized touch screen interface operation

Stable process control

Click directly to send a message via WhatsApp

Equipment performance

serial number	Performance description	Performance parameters
	Layer temperature range	- 50 ℃ ~ + 80 ℃
	Plate refrigeration speed (no load, plate import)	+20 ℃ ~-40°C ≤ 60 mins
	Heating speed	≥1 °C/min
	Layer temperature uniformity	±2 ℃ (after no-load balancing)
	Condenser ice catching capacity	200 kg/batch
	Condenser cooling speed (no load)	+20～-40 ℃ ≤ 30 mins
	condenser minimum temperature	≤ - 70 ℃ _
	System ultimate vacuum	≤ 5Pa _
	Vacuum pumping speed	Pump from atmospheric pressure to 10pa≤30min s
	System leakage rate	10pa.L / sec _

Public works

serial number	describe	Require
	Total installed power	48 Kw (380V, 50Hz, 3 phases, 5 wires)
	Cooling water consumption for refrigeration system	15 m ³/h(1.5≤P≤2bar,1 5 ≤T≤ 25℃ )
3. 3 Cleaning and defrosting water consumption 1T/batch

Equipment size

serial number	describe	Require
	Overall structure	All-in-one
	Dimensions	Approx. 6000 × 1650 × 2150 mm
	Total Weight	About 6T
is subject to actual measurement size.

Technical Parameters

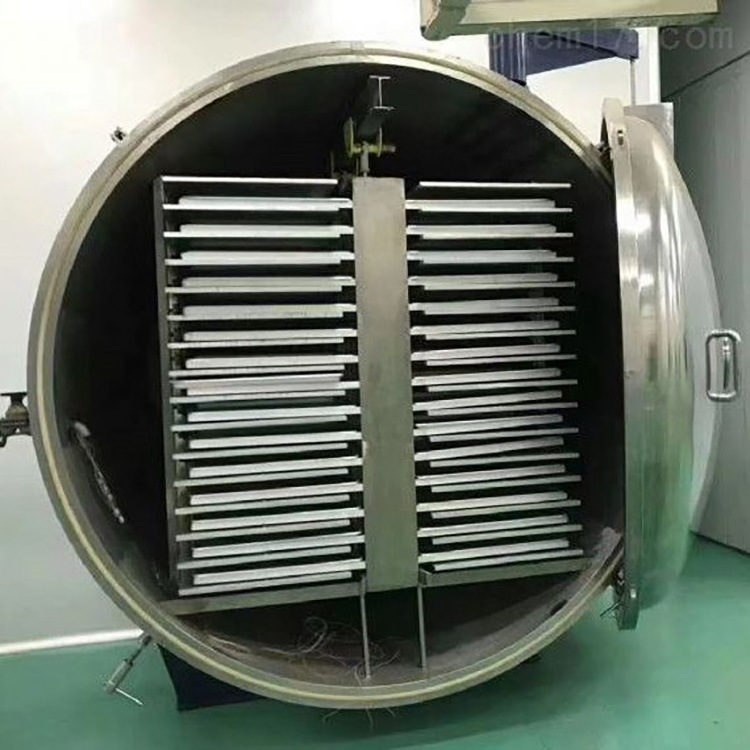

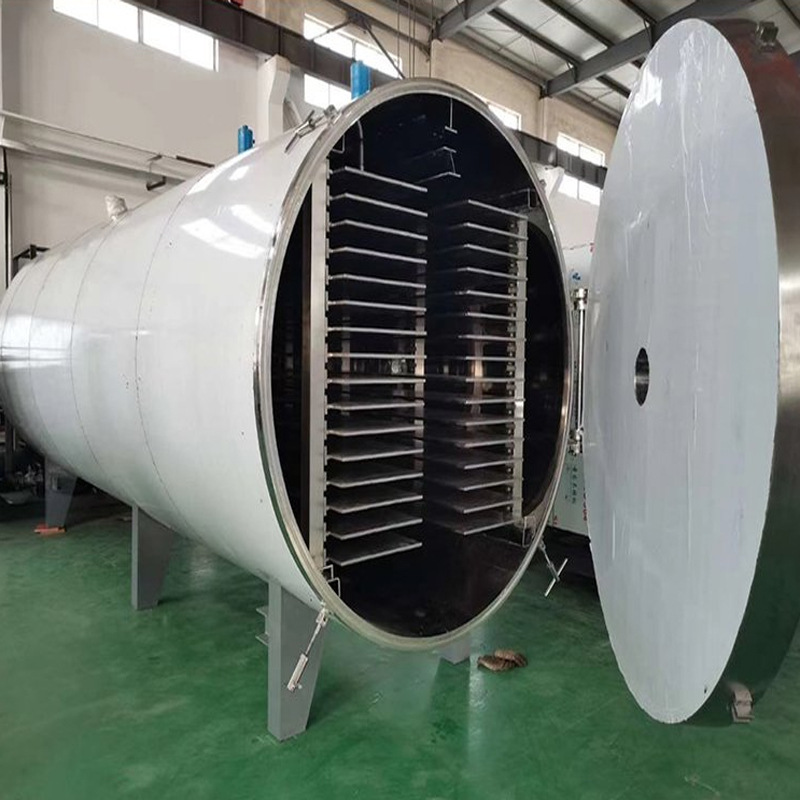

5.1 Drying box

Main configuration
serial number	name	Model/Specification/Material	quantity
	Drying box	Material: 304 stainless steel	1 set
	Ply	Area: 10.5㎡	1 set
		Dimensions: 1000 × 1 500 × 15 mm	7th floor
		Material: 304 stainless steel	1 set
	box door	Material: 304 stainless steel	1 set
	Drying box sight glass	DN -200	1 _
	door mirror	DN -200	1
	door lock	Specially designed manual door locking system	1 set
	Product temperature probe	Pt-100 thermal resistance class A	4 sticks
	Thermal oil temperature probe	Pt-100 thermal resistance class A	2 sticks

Performance description
serial number	performance	describe
	design pressure	-0.1Mpa ~ normal pressure
	Cabinet and board finish	Ra≤0. 8um (subject to actual situation)
	Ply spacing	7 0mm (subject to actual situation)
	Layer temperature uniformity	± 2 °C (no load, -40°C, 0°C, +40°C)
	Drying box shape	cylinder
	Insulation	Aluminum silicate and polyurethane foam
	door seal	O type silicone rubber

5.2 Condenser (including condensation coil)

Main configuration
serial number	name	Model/Specification/Material	quantity
	condenser	Material: 304 stainless steel	1 set
	condensing coil	Material: 304 stainless steel	1 set
	condenser sight glass	DN - 200mm	1
	Condenser temperature probe	Pt-100 thermal resistance class A	1 stick
	Defrost spray ball	Material: 304 stainless steel	1

Performance parameters
serial number	performance	describe
	design pressure	-0.1Mpa ~ normal pressure
	smoothness	Ra≤0. 8um (subject to actual situation)
	Condenser appearance	cylinder
	Insulation	Aluminum silicate and polyurethane foam

5.3 cut off

Main configuration

serial number	name	Model/Specification/Material	quantity
	Partition board structure	Material: 3 04 stainless steel	1 set
	Partition board structure	Dimensions: DN 400

5.4 Cooling System

Main configuration

serial number	name	Model/Specification/Material
	compressor	Two-stage semi -hermetic piston compressor	1 set
	refrigerant	R404a (in-machine quantity)	Appropriate amount
	oil separator	O&F	1 _
	return air filter	EMERSON / HPEOK	1 set
	Oil pressure difference controller	Danish DANFOSS /Electronic oil pressure difference	1 _
	oil plane sight glass	HPEOK	1 _
	Pressure protection device	DANFOSS, Denmark	3 _
	Automatic liquid collecting device	DANFOSS, Denmark	1 _
	Gas-liquid separator	HPEOK	1 _
	filter drier	EMERSON or HPEOK	1 set
	pressure gauge	Domestic	4 _
	Expansion valve	DANFOSS, Denmark	3 _
	The electromagnetic valve	DANFOSS, Denmark	3 _
	shock absorber tube	304	2 sets

5.5 Vacuum system

Main configuration

serial number	name	Model/Specification/Material	quantity
	Vacuum pump	DRV-60	1 set
	Roots pump	ZJ-70	1 set
	Pump trap isolation valve	DN 65	1
	Pump head valve	Electromagnetic vacuum damper valve	1 _
	vacuum probe	Pirani vacuum gauge	1 _

5.6 Re-pressure aeration system

Main configuration

serial number	name	Model/Specification/Material	quantity
	filter	Domestic block installation 0.22μm
	Aeration valve	Solenoid flapper valve	1
	pipeline	Material: 304 stainless steel	1 set

5.7 circulatory system

Main configuration

serial number	name	Model/Specification/Material	quantity
	circulation pump	65-12F	1 set
	Thermal oil	Low viscosity silicone oil	In-machine quantity
	Electric heating	15K w (approx.)	1 stick
	heat exchanger	Plate heat exchanger	1 _
	Thermal oil temperature probe	Pt-100 thermal resistance class A	2 sticks
	Temperature Controller	Domestic	1
	pressure controller	DANFOSS , Denmark	1

5.8 Electrical control system

5.10.1 Main configuration

serial number	name	Model/Specification/Material	quantity
	PLC	Taiwan Yonghong	1 set
	Display
	air switch	The actual situation shall prevail	1 set
	Electrical protection level	IP22	/
Software control mode: manual and automatic control

5.10.2 Software functions
serial number	describe
	Process: automatic freeze-drying, manual freeze-drying, manual defrosting process
	Flexible formula function: freeze-dried formula (multiple groups)
	Real-time curve and historical curve
	Real-time alarms and alarm logs
