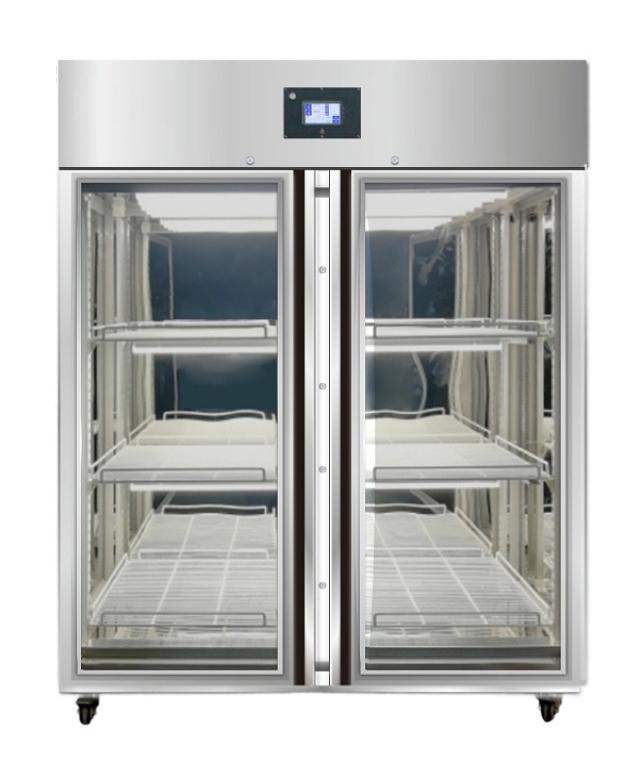

HT-1500 chromatography experiment refrigerator (double door)
Product purpose:
Chromatography experiment freezer is also called chromatography freezer, numerical control chromatography freezer, chromatography cabinet and constant temperature chromatography cabinet. YC series chromatography experiment freezer is a special-purpose low-temperature cabinet specially developed for biochemical chromatography experiment. It can also be used in other experiments requiring low-temperature environment or for cold storage of goods. After scientific design, the total height of the freezer is no more than 2m, which is convenient for entering and leaving the room and elevator; The space in the cabinet is large and easy to operate.
Click directly to send a message via WhatsApp
Main features:
1. The design of liquid chromatography cabinet is suitable for a variety of chromatography and drug refrigeration. It is a high-performance multi-functional refrigerator specially designed for the laboratory.
2. The evaporated gas is cooled by air, so that there is no liquid dripping in the box. The fully transparent glass visual door is electrically heated, without condensation and dripping. The door is locked. The space in the cabinet is large, which is convenient for installing instruments and equipment in the cabinet.
3. Our special refrigerator for high-performance chromatography is equipped with microprocessor control system, forced air flow system, industrial quality cabinet structure, polyurethane foam insulation and super strength refrigeration imported compressor specially selected for industrial, clinical and scientific applications;
4. Two multi-functional maintenance ports are convenient for the connection of instrument pipelines and lines, and the instruments and equipment can be easily set in the cavity;
5. Forced air circulation can ensure uniform temperature between all brackets, and the surrounding closed hole door gasket can maintain tightness;
6. The self-contained lamp, disinfection lamp and power socket are set in the cabinet; It can provide power supply for small biological experimental equipment;
7. With over temperature and differential temperature alarm function, high and low temperature are automatically cut off to ensure safety; Casters are set under it, which is convenient to move;
Optional
1. Multilayer load-bearing shelf
2. The whole machine is made of stainless steel
3. On demand customization
Technical indicators:
External dimension: 1530*800*2000mm
Internal dimension:1400*660*1550mm
Volume: 1432L
Tray size (w * d):605*620mm
Temperature display: digital (0.1 ℃ per gear)
Temperature range: 1 ℃ - 10 ℃
Cooling mode: forced air convection
Thawing mode: manual forced circulation defrosting
Internal material: 304 stainless steel
Compressor: secop sealed compressor in Germany
Motor: German EBM
Built in power supply: 2 five hole sockets
Defrosting heater: 600W
Overall power (220V / 50Hz): 950W
Automatic rebound door: double door
Laminate: 3
Inspection hole: 2 & 40mm
Lighting in the box: 40W * 1, fluorescent lamp
Disinfection in the box: 20W * 1, UV lamp
Weight: about 380kg
