TURF MACHINES

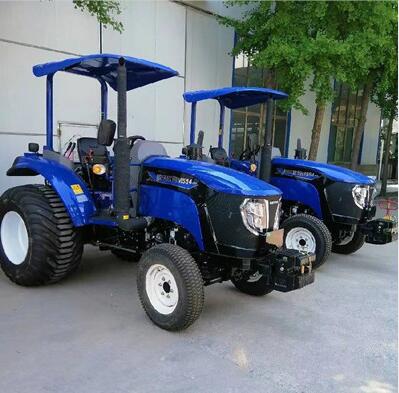

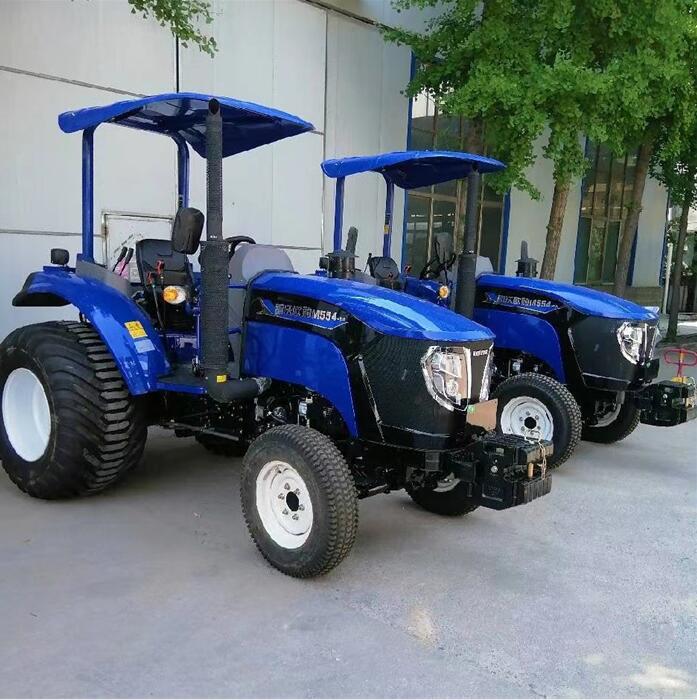

Lovol Lawn & Garden Tractors

Lovol Lawn & Garden Tractors

Description Inquire

Lovol Lawn tractors have been innovating and upgrading their products, and their product quality has been improving.Product appearance and logos are also evolving.



Green power

Matching Zhejiang Xinchang 498BT diesel engine, it has large torque reserve and strong power;

Power emission upgrade, green and environmentally friendly power, performance upgrade, low fuel consumption and high reliability.



More advanced technology

The new generation model introduced by Lovol from Europe has become a blueprint model for many domestic manufacturers to learn and imitate after nearly ten years of maturation and improvement in China.

Reinforced sealed front drive axle (forward axle), high reliability;

Force level adjustment lifter, higher reliability;



Click directly to send a message via WhatsApp

Features

1. Front and rear four-wheel drive (4WD), hydraulic power steering

2. Full diesel 4C5-55U32-C05-120 engine (404KW), National III emission standard,

3. Anti-roll safety frame, awning,

4 12+12, gear shifting by gear sleeve, with differential lock.

5. Hydraulic output, 2-way multi-way valve,

6 wide lawn tires

7. 6-button PT0 power output (export model), (540, 760) international standards.

8. Front weight iron

9.Dual multi-way valve hydraulic output, the interface can be selected from both metric and imperial interfaces, which facilitates convenient connection with imported machinery and can meet the operation requirements of various machinery and equipment in golf courses.

10.Quality guarantee for 1 year



Technical Data

Tractor Model

M504-B

M554-B

M604-B

M704-B

M804-B

Type

4×4four-wheel drive

Dimension

3560*1680*2045

4130*1795*2160

Engine powerKW

36.8

40.4

44.1

51.5

58.8

Engine powerHP

25

55

60

70

80

PTO spline

6



540/760(1000)

PTO shaft (rev/min)

540/720(1000)

540/760

Wheel base (mm)

1673

2072

Front wheel track (mm)

1215/1050

1450

Rear wheel track (mm)

960-1460

1408

forward speed range km/h

1.98-27.95

2.86-33.59

Reverse speed range km/h

2.63-12.17

(8+2 gear)

  2.50-29.44

Standard tires

Option 1

Front 26×7.5-16/Back 11.2-20

Option 2

Front 31x9.5-16/Back 13-20

 wide lawn tires

Option 3

Front 29x12.5-15/Back 13-20

Option 4

Front 29×12.50-15/Back 41×14-20

Or 44x18-20

Option 5

Front 29×12.50-15/Back 600/50-22.5
