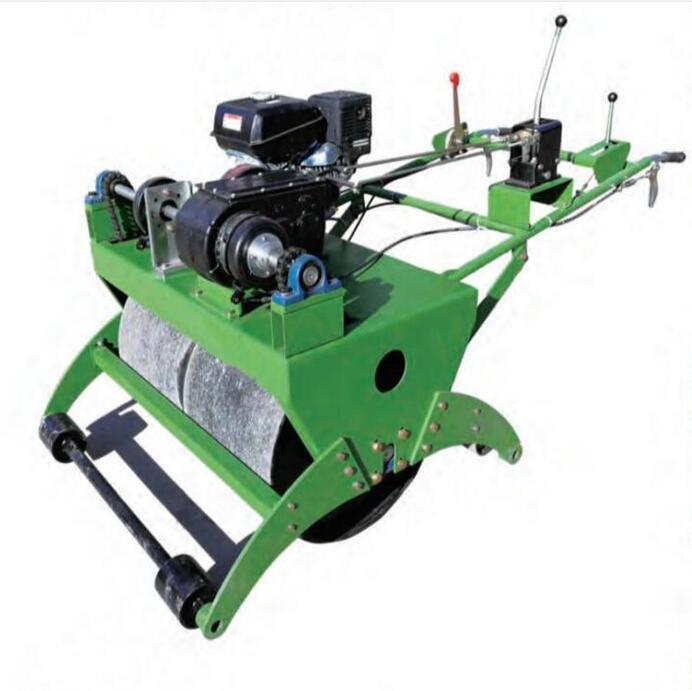

Green lawn roller press for Golf Course

Features

1. Large and medium-sized self-propelled green rollers press, the rollers are two independent parts, the left and right half shafts of the gearbox are independently driven, the chain is driven on the left and right half rollers, and the left and right clutch handles are controlled to achieve power steering, which is light and convenient to operate. This is the design highlight that distinguishes this product from other similar products. Easily steer with one hand control. Hold the left (right) clutch for easy 360°steering

2.The transmission with three forward gears and one reverse gear (F3R1) can facilitate the rapid movement of the equipment to the working site and solve the problem of slow movement of imported equipment when it is not working situation.

3. The weight is adjusted by adding water, sand and other carriers. The left and right half sleeves and rollers belong to different structural spaces, which avoids the impact of adding water and sand on the sleeve bearings.

4. Use a 9HP high-power gasoline engine to increase the climbing ability. Auxiliary support rollers are provided at the front and rear respectively to facilitate the operation and control of the equipment.

5. The shift lever adopts a rigid design. The other left and right steering and throttle are controlled by soft cables. The brakes use hydraulic disc brakes. All operating mechanism handles are within easy reach,fully showing the humanized design concept.

6. Front and rear auxiliary support wheels ensure safe and easy driving for the operator.

7. The height of the control handle is adjustable, suitable for operators of different heights.

Technical Data
