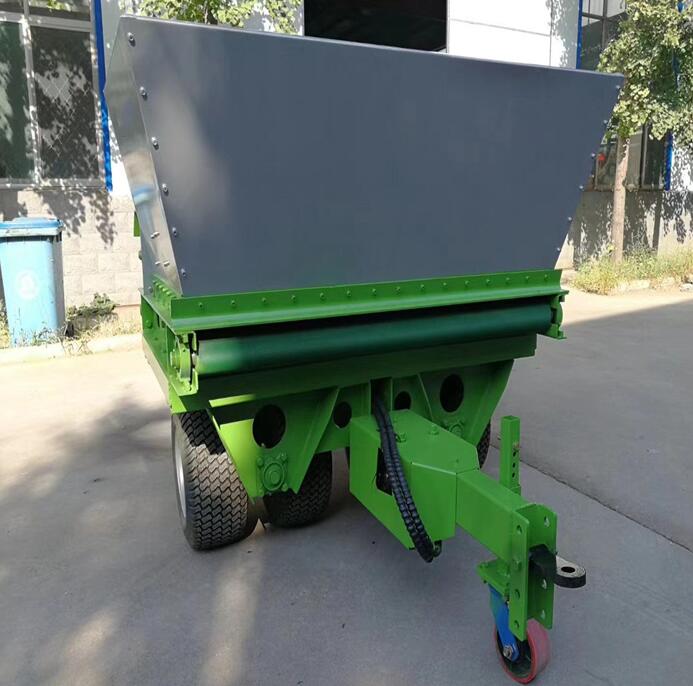

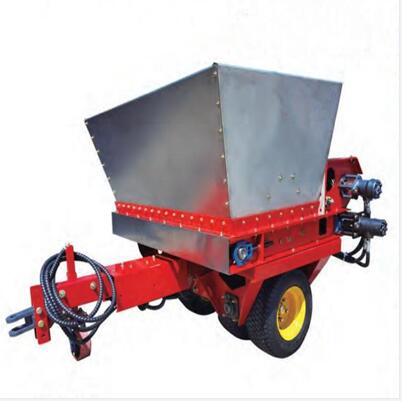

The HT1020 Sports Field Top Dresser, It was specifically designed for top dressing a range of turf playing and sports fields, a tow-behind trailed or trailer design for suitably sized tractors.
Click directly to send a message via WhatsApp
Features
- Double cross-shaped axle design, each two tires are independently grouped, it can deflect 7 °, automatically adapt to ground fluctuations, help greatly increase the stability of the top dressing machine on the court.
2. Three driven rollers are added to the bottom of the sand-covered conveyor belt to drive the sliding friction with rolling friction, which greatly reduces the resistance of the sand belt and makes the hydraulic motor work more lightly.
3. Two weight-reducing beams are added to the sand bucket to effectively bear the pressure of the sand on the conveyor belt, making the hydraulic motor more labor-saving, reducing the wear of the conveyor belt and increasing the life, greatly reducing the power output of the tractor
4. The sand bucket adopts 3mm thick galvanized sheet, and the covering part adopts 2mm thick galvanized sheet, which will never rust.
5. The structural parts of sheet metal parts are all laser cutting and CNC flame cutting, and the edges of the whole machine are smooth and regular.
6. The key hydraulic parts adopt American Eaton or White hydraulic motor and imported flow regulating valve, which are durable and reliable.
7. Exclusive use of 6mm nitrile rubber transmission sand-coated belt, wear resistance and strength is much better than PVC conveyor belt, service life is more than 5 years
8. The conveyor belt has guide strips to prevent deviations and reduce abnormal wear on the sand-covered conveyor belt
9. Adopt wide-width high-bearing lawn tires to reduce the pressure on the ground lawn and protect the court lawn
10. All high-strength standard parts and imported bearings are used.
11. The BRAND flow control valve imported from the United States separately controls the speed of the conveyor belt brush and makes each rotation controllable and adjustable
Technical Data
|
Model |
HT1020 |
|
Wroking Model |
Tractor pulling |
|
Tractor Equippted |
≥25HP |
|
Pulling Height |
300mm(Adjustable) |
|
Product Type |
Hydraulic motor conveyor roller brush |
|
Sand Bucket Size |
1793*951*600 |
|
Sand Bucket Volume |
1.02m3 |
|
Working Width |
1332mm |
|
Net Weight |
1800KG |
