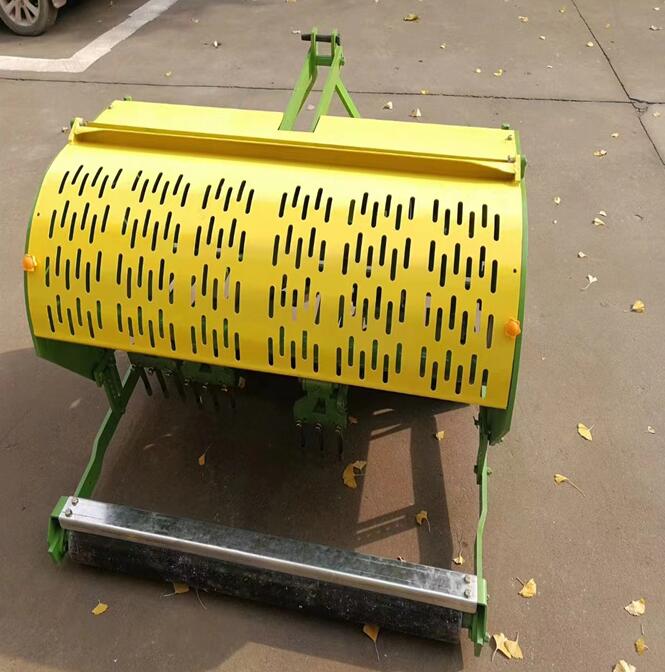

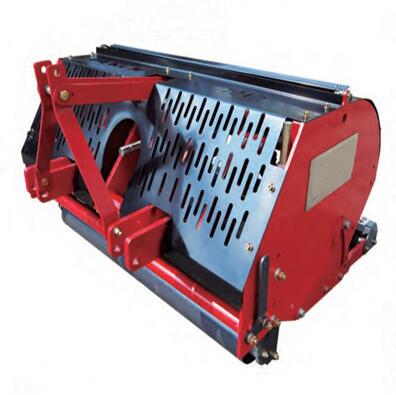

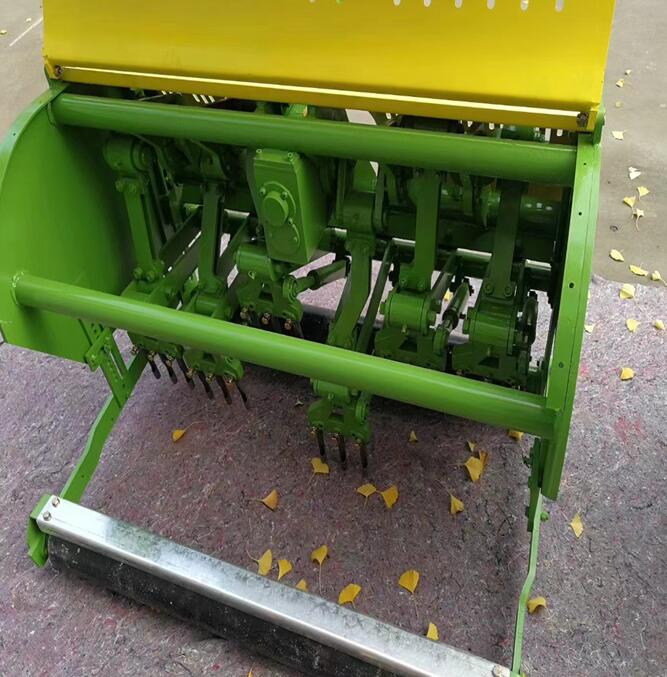

Turf Aercore hole punching machine helps alleviate waterlogging and deep aerates the ground to promote healthy growth. The Turf Aercore de-compacts the soil on sports pitches by inserting equally spaced holes in the turf which allow water and air to filter through to the grassroots.
Click directly to send a message via WhatsApp
Features
1.Huatao Turf Aercore, hole punching machine is well suited to lower hp tractors where access is restricted or a lighter footprint is needed.
2.Maximum working depth of 25cm (10″)
3.Use 12mm or 19mm (½” or ¾”) tines or mini-tines which tines are often used for summer ventilation.
4.It is light enough to be used on the golf greens, at sametime strong enough for hard soil.
5.Precision casting moving parts
6.Two options: solid and hollow
7.Can be hollowed out to collect clay hearts
Huatao Turf Aercore Hole Punching machine used widely on sports fields and all areas of the golf course.
Technical Data
|
Model |
HT7212 |
|
Recommended Tractor |
18HP, Min lifting force 570kg |
|
Working Width |
1200mm |
|
Working Depth |
Max 250mm |
|
Hole Distance L/ R Direction |
100mm*65mm |
|
Hole Distance (Forward) |
25-165mm |
|
Spacing 2.5” (65 mm) |
Up to 0.60 mph (1.00 kph) |
|
Spacing 4” (100 mm) |
Up to 1.00 mph (1.50 kph) |
|
Spacing 6.5” (165 mm) |
Up to 1.60 mph (2.50 kph) |
|
Transport Dimensions |
1.35m x0.8m x1.1m |
|
Standard Configuration |
solid hole pin 12mm x250mm |
|
Net Weight |
550kg |
