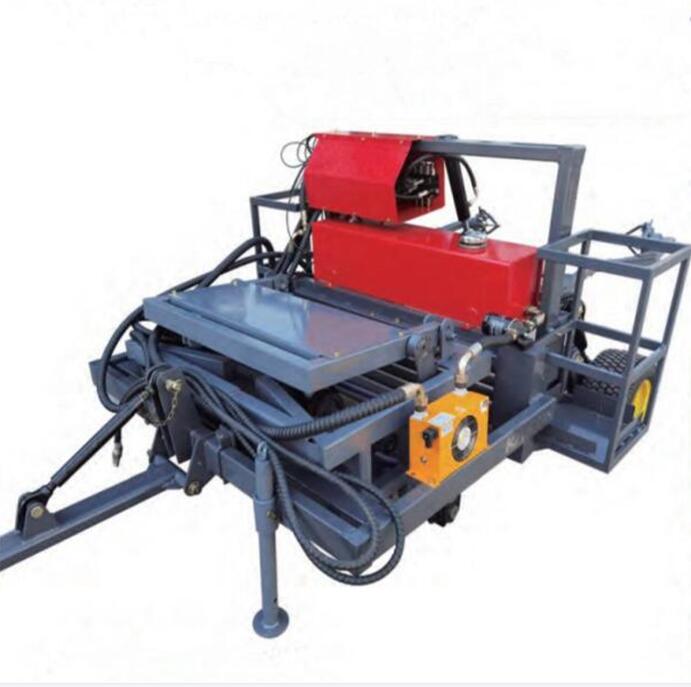

HT48 Roll Sod Harvester

Description Inquire

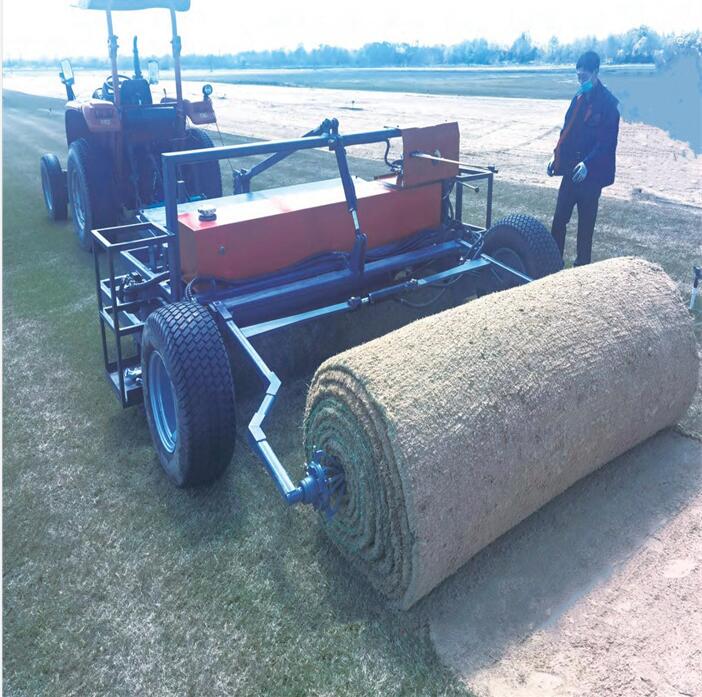

Huatao Roll Harvester widely used in turf fields. It use trailer type, PTO pump driven with netting attachments and depth control. Its unique design creates a tight and big roll.

Features

3-point draw-bar mount hook-up.
21 gpm PTO pump driven.

3. Trailer mount ensures correct set-up.

4. 40 – 60 HP tractor needed.

5.48″ cutting width (Option width 42’’,79’’)

6. Single floating head.

7.cutting depth 40mm

8.Side-cut colter blades.

9. Independent hydraulics.

Technical Data

Model	HT48
Features	Drafting assembly adjustable design Fully independent hydraulic settings
Working Width	1200mm,48 inch
Power From	Lawn Tractor PTO Driven Hydraulic Pump
Electric Putter	Adjust harvest thickness 0-40mm
Fuel Tank Volume	180L
Advantages	Traction frame height adjustable Tire controllable lift and down
Disc Blade Dia.	300mm
